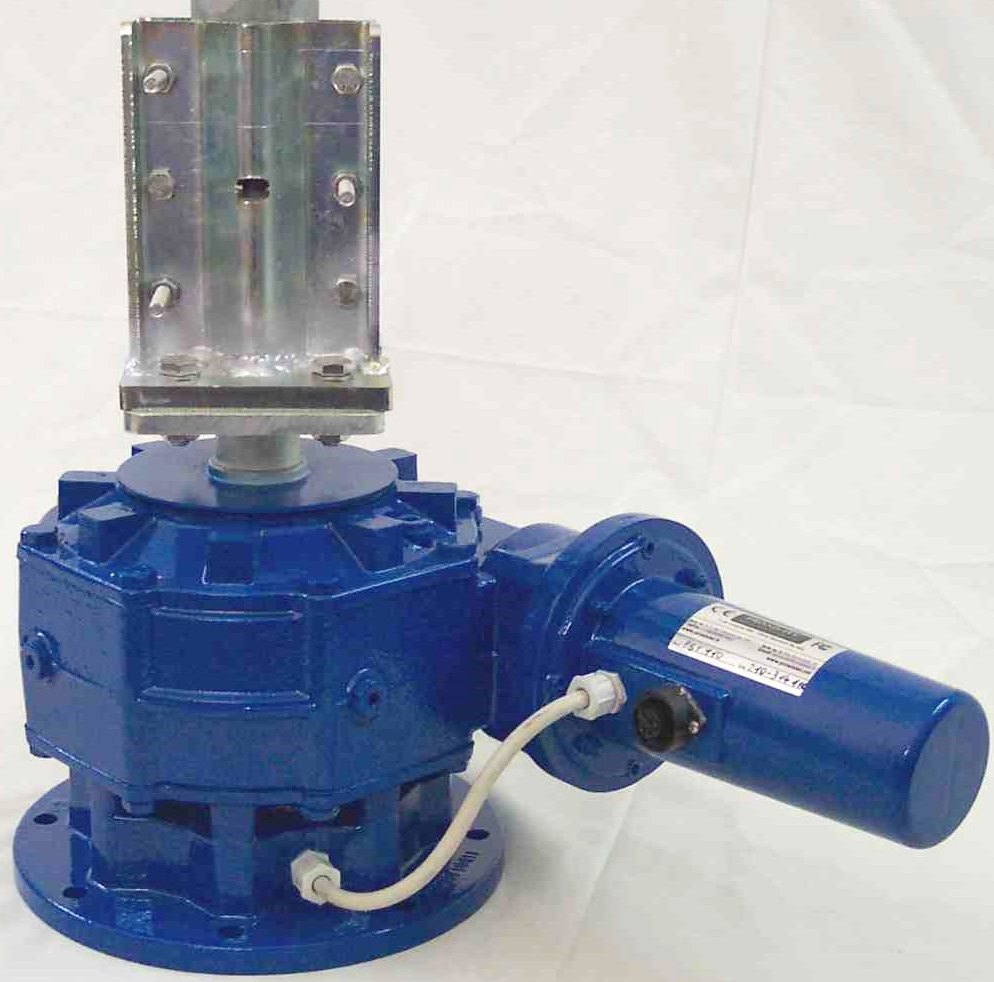

PST110
1.500,00 €
Διαθέσιμο κατόπιν παραγγελίας
Περιγραφή
Super Heavy Duty antenna Rotator, handle up 10m2 (80sq. Ft.) of antenna windload.
Worm-wheel technology irreversible under mast torque.
Large starting and braking torque
Soft start e soft stop with programmable ramp speed.
Two years warranty
Specifications:
– Max wind load area 10 m�
– Braking torque 16.500Kgcm = 1.617Nm
– Rotating torque 7.142Kgcm = 700Nm
– Max vertical load 1.200Kg
– Motor voltage 24 VDC
– Rotating range 360�
– Rotation speed ~120 seconds for 360�
– Reading accuracy 1� no backlash
– Antenna mast OD 40-80mm
– Operational temperature range (�C): rotor unit -40� � +60�
control box -20� � +60�
– Storage temperature (�C): rotor unit -40� � +70�
control box -25� � +60�
– Control box power input 230VAC (115VAC) , 50-60Hz, 100VA
– Direction reading Digital Hall Encoders
– Limits Electronic, adjustable by software
– Rotator cable 7 wires (2 x 1mm� + 5 x 0,5mm�) double shield cable
– Weight (rotator only) ~ 40kg
Επιπλέον πληροφορίες
| Βάρος | 50 κ. |
|---|
